RUCKUS R750 Wi-Fi 6 Dual-Band 4×4:4 Wireless Access Point Multi-Gigabit PoE BLE/Zigbee Wireless Access Point (901-R750-XX00)

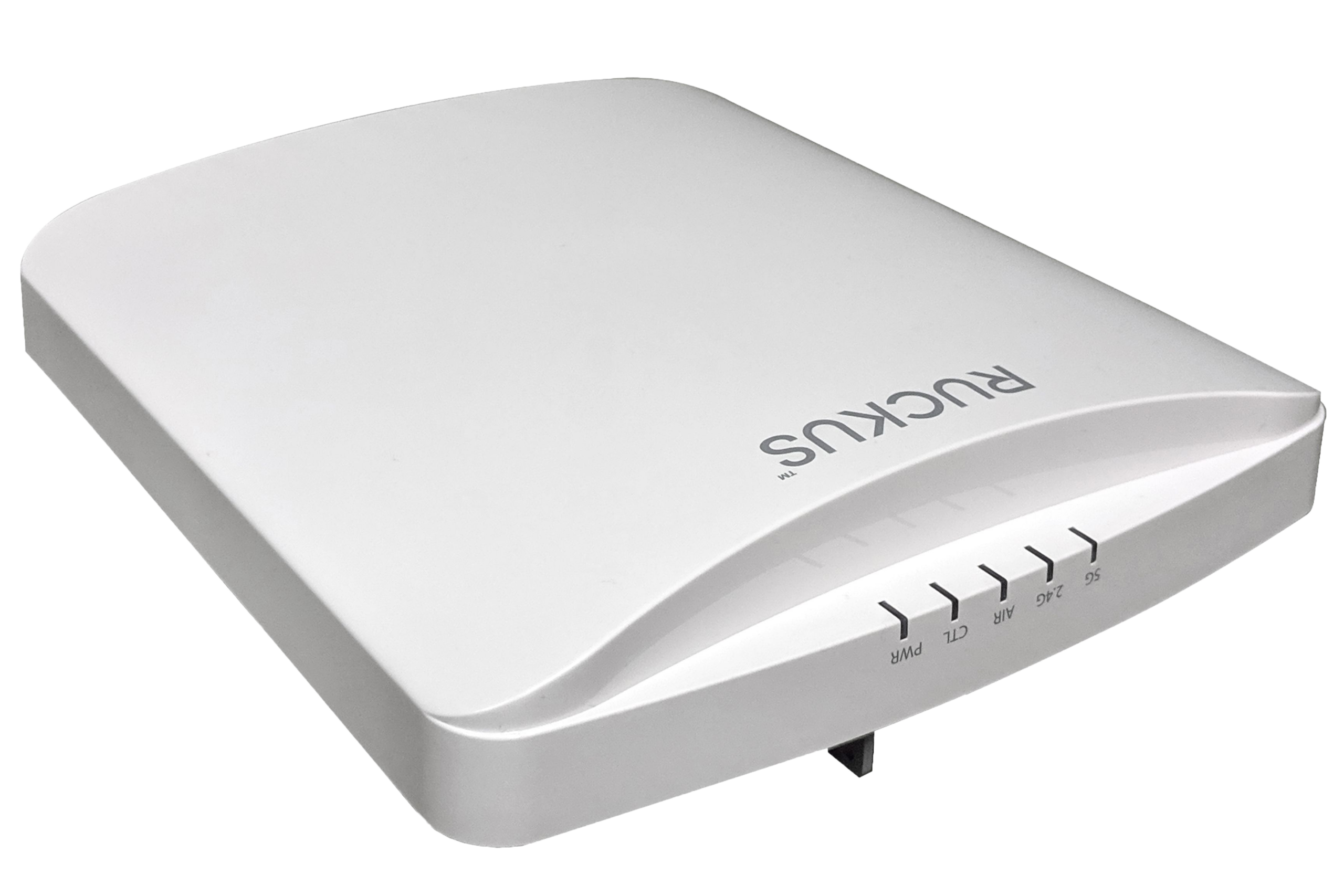

The RUCKUS R750 Wi-Fi 6 Wireless Access Point is a high-performance enterprise access point built for demanding indoor environments. Designed with Wi-Fi 6 (802.11ax), 4×4:4 MU-MIMO technology, OFDMA, BeamFlex+ adaptive antennas, and multi-gigabit connectivity, the R750 delivers exceptional wireless performance, increased capacity, and improved efficiency for high-density deployments.
In addition, integrated BLE and Zigbee support allows organizations to build a unified Wi-Fi and IoT infrastructure without deploying separate networks. As a result, the R750 is an ideal solution for enterprises, educational institutions, healthcare facilities, hospitality venues, and large public spaces.
Specifications Table
| Feature | Specification |
|---|---|
| Model | 901-R750-XX00 |
| Product Type | Indoor Wireless Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Radio Configuration | 4×4:4 (5 GHz) + 4×4:4 (2.4 GHz) |
| Spatial Streams | 8 Total Spatial Streams |
| Maximum PHY Rate | Up to 4.8 Gbps |
| 2.4 GHz Data Rate | Up to 1.148 Gbps |
| 5 GHz Data Rate | Up to 3.6 Gbps |
| Wi-Fi Features | OFDMA, MU-MIMO, BSS Coloring, TWT |
| Ethernet Ports | 1 × 2.5GbE Multi-Gigabit Port, 1 × 1GbE Port |
| Power Requirements | 802.3at PoE+ |
| USB Port | 1 × USB 2.0 |
| IoT Support | Integrated BLE and Zigbee |
| Antenna Technology | BeamFlex+ Adaptive Antennas |
| Channel Optimization | ChannelFly |
| Mesh Technology | SmartMesh |
| Client Capacity | Up to 1,024 Clients |
| SSIDs Supported | Up to 31 SSIDs per Radio |
| Security | WPA2, WPA3, 802.1X, Dynamic PSK |
| VLAN Support | 802.1Q |
| Management Options | RUCKUS One, SmartZone, ZoneDirector, Unleashed, Standalone |
| Mounting Options | Ceiling, Wall |
| Deployment | Indoor Enterprise Environments |
Powerful Wi-Fi 6 Performance
First, the R750 leverages Wi-Fi 6 technology to deliver faster speeds, lower latency, and improved efficiency compared to previous Wi-Fi generations.
Key benefits include:
- Higher network capacity
- Better performance in crowded environments
- Faster application response times
- Improved battery life for connected devices
- Enhanced wireless reliability
As a result, users experience smooth connectivity even during peak usage periods.
Advanced 4×4:4 MU-MIMO Architecture
The R750 features 4×4:4 radios on both the 2.4 GHz and 5 GHz bands, providing a total of eight spatial streams.
This architecture delivers:
- Higher throughput
- Improved client performance
- Better simultaneous device support
- Increased network efficiency
Therefore, the access point performs exceptionally well in high-density deployments.
OFDMA and Wi-Fi 6 Efficiency Features
In addition, the R750 supports key Wi-Fi 6 technologies, including:
- OFDMA
- MU-MIMO
- BSS Coloring
- Target Wake Time (TWT)
These features help reduce congestion, improve airtime efficiency, and increase overall network performance.
BeamFlex+ Adaptive Antennas
RUCKUS BeamFlex+ technology dynamically selects the optimal antenna pattern for each connected device.
Benefits include:
- Improved wireless coverage
- Reduced interference
- Stronger signal quality
- Better client connectivity
- Consistent performance throughout the coverage area
As a result, users receive a more reliable wireless experience.
Integrated BLE and Zigbee for IoT
The R750 includes onboard Bluetooth Low Energy (BLE) and Zigbee radios.
This enables support for:
- Smart building solutions
- Asset tracking
- Environmental monitoring
- Location-based services
- IoT sensor networks
Therefore, organizations can consolidate Wi-Fi and IoT connectivity on a single platform.
Multi-Gigabit Ethernet Connectivity
To support Wi-Fi 6 performance, the R750 includes:
- 1 × 2.5GbE Multi-Gigabit Ethernet port
- 1 × 1GbE Ethernet port
As a result, the wired infrastructure can handle increased wireless traffic while reducing network bottlenecks.
SmartMesh and ChannelFly Technologies
The R750 incorporates proven RUCKUS wireless optimization technologies.
SmartMesh
- Self-forming mesh networking
- Self-healing wireless connections
- Reduced cabling requirements
ChannelFly
- Dynamic channel selection
- Automatic interference avoidance
- Improved wireless performance
Together, these technologies help maximize network reliability and efficiency.
Enterprise-Grade Security
Security features include:
- WPA3 security
- WPA2 compatibility
- 802.1X authentication
- Dynamic PSK
- Secure guest access
- VLAN segmentation
Therefore, organizations can maintain strong protection for users and devices.
Key Features
- Wi-Fi 6 (802.11ax) technology
- Dual-band operation
- 4×4:4 MU-MIMO radios on both bands
- Up to 4.8 Gbps aggregate throughput
- OFDMA support
- BeamFlex+ adaptive antennas
- 2.5GbE multi-gigabit uplink
- Integrated BLE and Zigbee radios
- SmartMesh wireless meshing
- ChannelFly optimization
- Enterprise-grade security
- Flexible cloud and controller management
Ideal Use Cases
- Enterprise offices
- Universities and schools
- Hospitals and healthcare facilities
- Hotels and resorts
- Retail environments
- Conference centers
- Public venues
- High-density indoor deployments
Summary
The RUCKUS R750 Wi-Fi 6 Dual-Band Wireless Access Point (901-R750-XX00) delivers enterprise-class wireless performance for organizations that require high capacity, reliability, and future-ready connectivity. With 4×4:4 MU-MIMO, OFDMA, BeamFlex+ technology, integrated BLE and Zigbee support, dual Ethernet ports, and multi-gigabit connectivity, it provides the performance and flexibility needed for modern wireless networks. Whether deployed in education, healthcare, hospitality, or enterprise environments, the R750 is built to handle demanding workloads while delivering an exceptional user experience.
