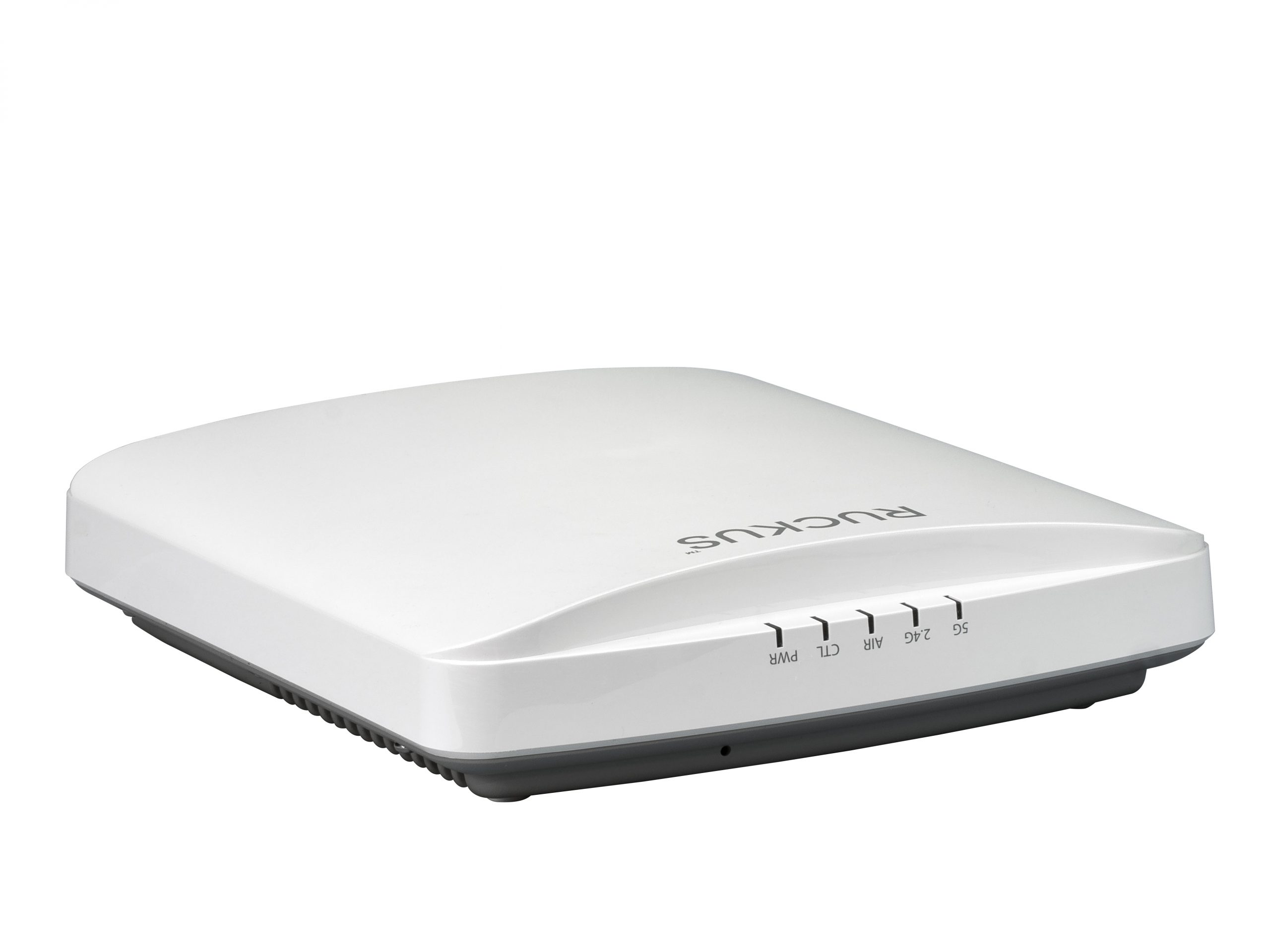

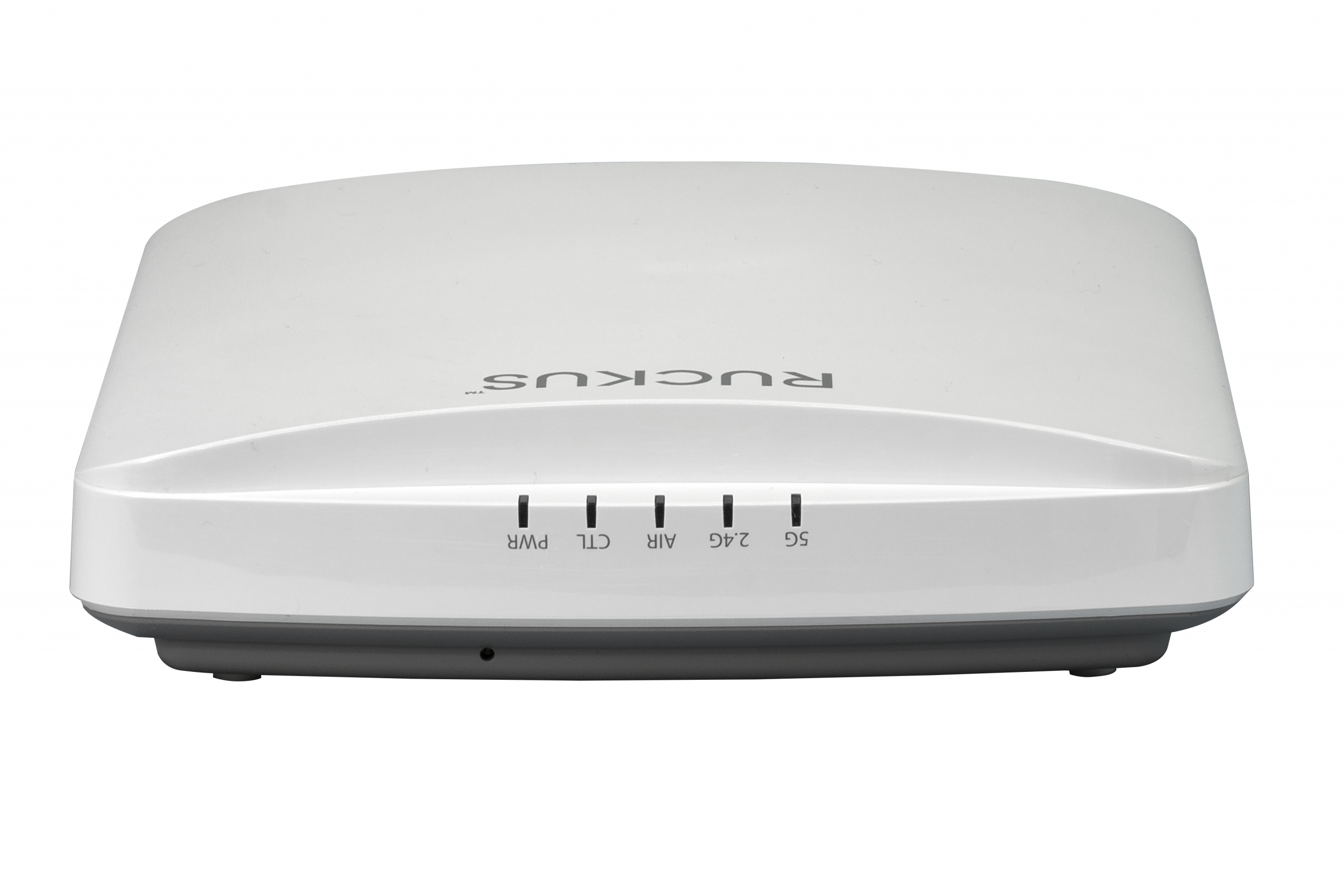

RUCKUS R650 Wi-Fi 6 Dual-Band Wireless Access Point (901-R650-XX00)
The RUCKUS R650 Wi-Fi 6 Access Point is a high-performance enterprise wireless solution designed for organizations that need greater capacity, stronger coverage, and reliable connectivity in high-density environments. In addition, it combines Wi-Fi 6 technology, BeamFlex+ adaptive antennas, OFDMA, MU-MIMO, and multi-gigabit connectivity to deliver excellent performance for modern business networks.
As a result, the R650 is ideal for offices, schools, healthcare facilities, hospitality venues, and large public spaces where many users connect simultaneously.
Specifications Table
| Feature | Specification |
|---|---|
| Model | 901-R650-XX00 |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Bands | Dual-band (2.4 GHz + 5 GHz) |
| Radio Configuration | Dual-radio |
| Spatial Streams | 4×4:4 (5 GHz) + 2×2:2 (2.4 GHz) |
| Maximum Data Rate | Up to 2.97 Gbps |
| Wi-Fi Technology | OFDMA, MU-MIMO, BSS Coloring |
| Antenna Technology | BeamFlex+ adaptive antennas |
| Ethernet Ports | 1 × 2.5GbE Multi-Gigabit + 1 × 1GbE |
| Channel Optimization | ChannelFly |
| Mesh Support | SmartMesh |
| Security | WPA2, WPA3, 802.1X, WIPS/WIDS |
| VLAN Support | 802.1Q VLAN |
| Management | Unleashed, SmartZone, RUCKUS One Cloud, Standalone |
| Power Options | PoH, uPoE, 802.3at PoE |
| USB Port | 1 × USB 2.0 |
| Mounting | Ceiling or Wall |
| Deployment Type | Indoor Enterprise Access Point |
High-Performance Wi-Fi 6 Connectivity
First, the R650 uses the latest Wi-Fi 6 (802.11ax) technology to improve wireless efficiency and capacity. Therefore, it can support more devices while maintaining fast and stable performance.
Key benefits include:
- Faster wireless speeds
- Lower latency
- Improved network efficiency
- Better performance in crowded environments
- Enhanced support for bandwidth-intensive applications
As a result, users enjoy smoother video conferencing, cloud applications, and wireless collaboration.
Advanced 4×4:4 + 2×2:2 Radio Architecture
Unlike entry-level access points, the R650 features:
- 4×4:4 streams on the 5 GHz radio
- 2×2:2 streams on the 2.4 GHz radio
This design provides higher capacity and better performance for large numbers of connected devices.
BeamFlex+ Adaptive Antenna Technology
The R650 includes RUCKUS BeamFlex+, which dynamically selects antenna patterns to optimize wireless connections for each device.
Because of this, it delivers:
- Better coverage
- Stronger signal quality
- Reduced interference
- Improved reliability
- Higher user satisfaction
Furthermore, BeamFlex+ helps maintain strong performance even in challenging RF environments.

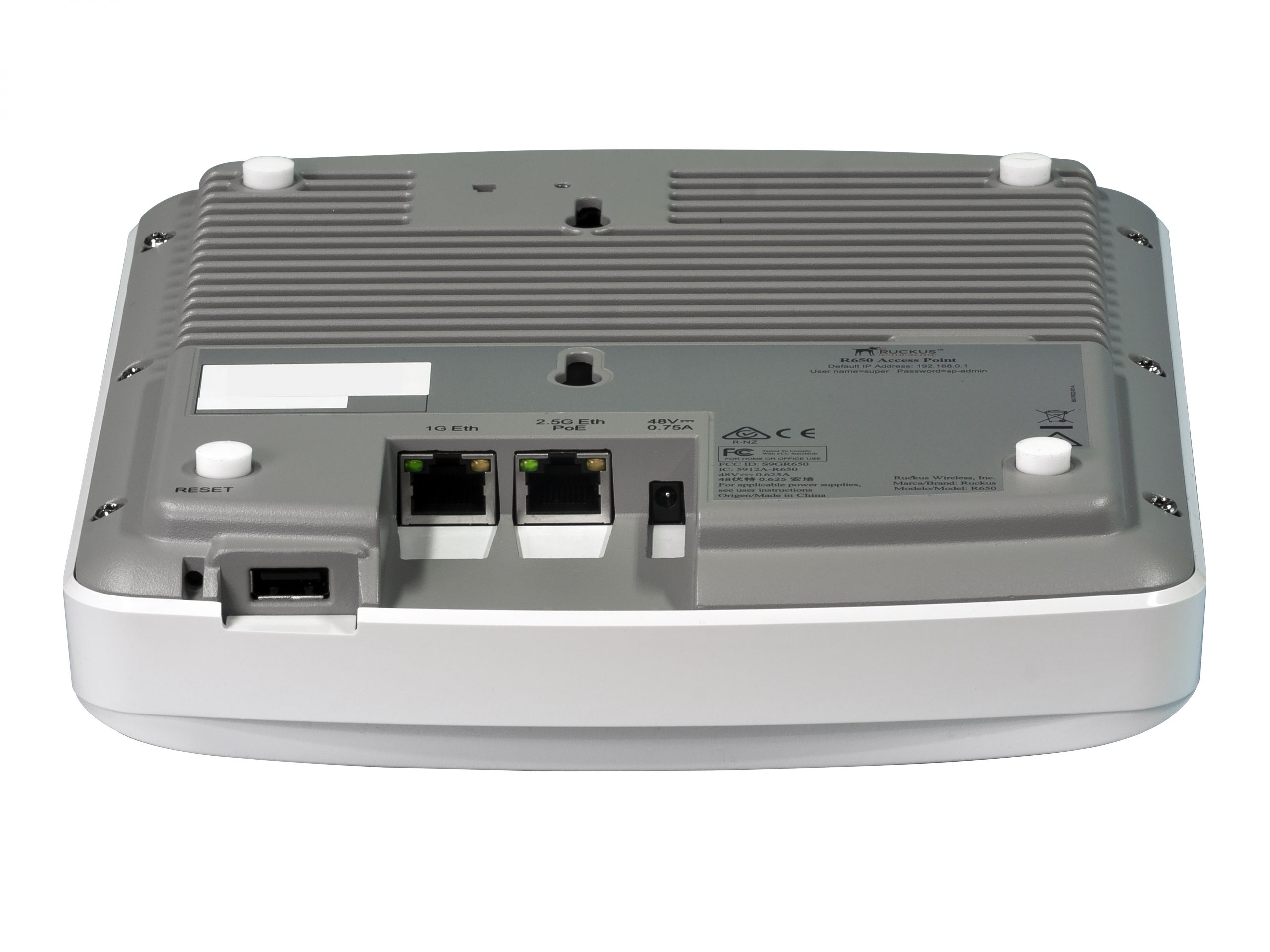

Multi-Gigabit Ethernet Connectivity
To support high-performance Wi-Fi 6 traffic, the R650 includes:
- 1 × 2.5GbE Multi-Gigabit Ethernet port
- 1 × 1GbE Ethernet port
Therefore, organizations can take full advantage of faster wireless speeds without creating wired network bottlenecks.
OFDMA and MU-MIMO Technology
The R650 incorporates advanced Wi-Fi 6 features such as:
OFDMA
Allows multiple devices to share channels more efficiently.
MU-MIMO
Enables simultaneous communication with multiple users.
BSS Coloring
Reduces interference from nearby wireless networks.
Together, these technologies improve network performance and user experience.
SmartMesh and ChannelFly Optimization
In addition, the R650 includes two key RUCKUS technologies:
SmartMesh
Creates self-forming and self-healing wireless mesh networks, reducing cabling requirements.
ChannelFly
Automatically selects the best-performing wireless channel based on real-time conditions.
As a result, network performance remains optimized with minimal manual intervention.
Enterprise Security
Security remains a critical requirement for modern networks. Therefore, the R650 includes:
- WPA3 security
- WPA2 compatibility
- 802.1X authentication
- Wireless intrusion detection and prevention (WIDS/WIPS)
- Dynamic VLAN assignment
- Access control policies
These features help secure users, devices, and business data.
Flexible Management Options
The R650 supports multiple deployment models:
- RUCKUS Unleashed
- SmartZone
- RUCKUS One Cloud
- Standalone operation
So, whether managing a single site or a large enterprise network, administrators have the flexibility they need.
Key Benefits
- Enterprise-grade Wi-Fi 6 performance
- 4×4:4 + 2×2:2 radio architecture
- Up to 2.97 Gbps aggregate throughput
- BeamFlex+ adaptive antenna technology
- Multi-Gigabit Ethernet connectivity
- OFDMA and MU-MIMO support
- SmartMesh wireless networking
- WPA3 enterprise security
- Flexible cloud and controller management
- Multiple PoE powering options
Ideal Use Cases
The R650 is well suited for:
- Enterprise offices
- Educational institutions
- Hospitals and healthcare facilities
- Hotels and hospitality venues
- Retail environments
- High-density public spaces
Summary
In conclusion, the RUCKUS R650 Wi-Fi 6 Dual-Band Access Point delivers the performance, coverage, and capacity required for modern enterprise networks. By combining advanced Wi-Fi 6 features, BeamFlex+ optimization, multi-gigabit connectivity, and enterprise-grade security, it provides a reliable and scalable wireless solution for demanding environments.
